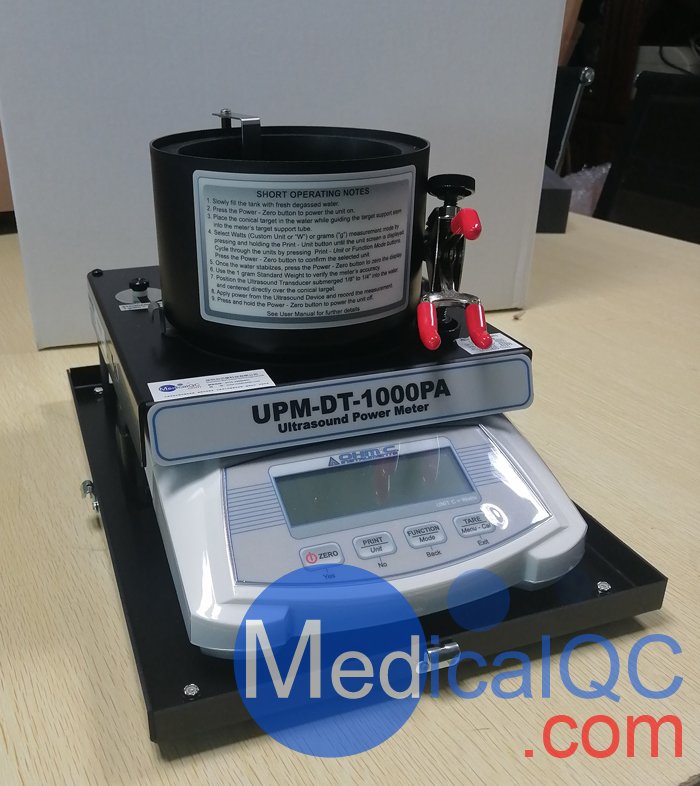

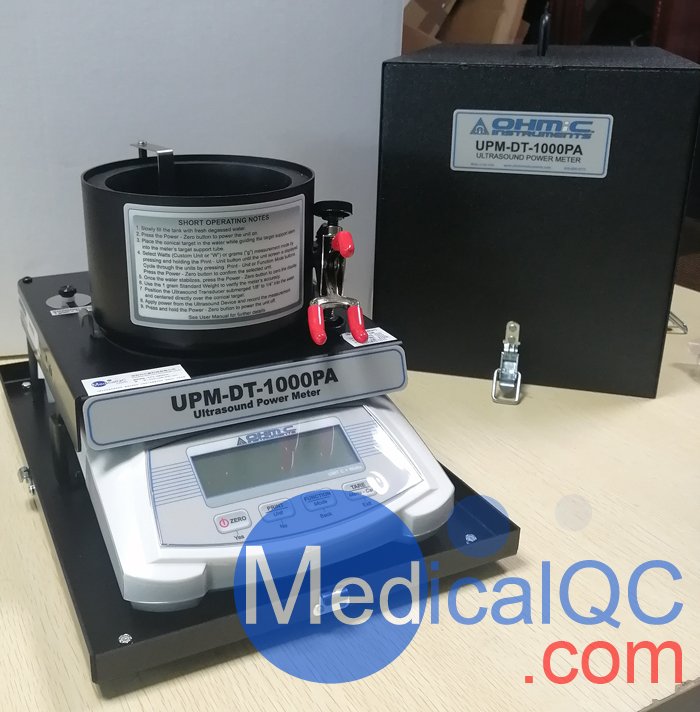

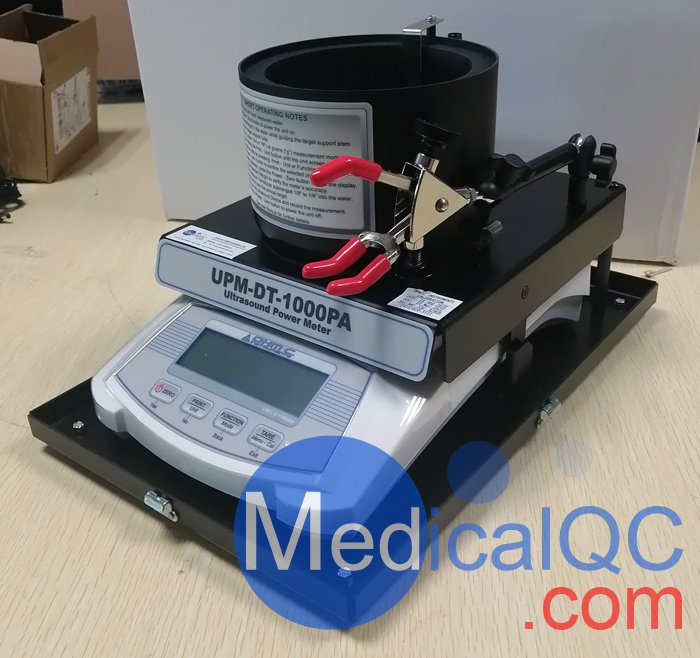

美國Ohmic UPM-DT-1000PA超聲功率計
OHMIC儀器最新型號UPM-DT-1000PA可提供任何目前UPM-DT的最快響應（3秒以下）和最高分辨率（0.001瓦）。UPM-DT系列自1986年以來一直在全球范圍內使用，并符合FDA，JCAHO，AAMI和AIUM推薦的測試指南。功率是通過輻射力平衡法測量的。UPM-DT的準確性可以追溯到NIST。

UPM-DT-1000PA超聲功率計的特點：

•最快響應時間=少于3秒
•最高分辨率：  1mW或0.1mg克模式
•五點認證（NIST可溯源）
•測量范圍：0-30WATTS
•頻率范圍：  。 5TO 10MHZ
•測量總脈沖或連續功率
•自動歸零和穩定
•數字顯示和RS-232接口

UPM-DT-1000PA超聲功率計包括的以下附件：
金屬外殼 - 黑色
通用電源
1克校準重量
NIST可溯源校準證書
用戶手冊









OHMIC Instruments Newest Model UPM-DT-1000PA provides the fastest response (under 3 seconds) and the highest resolution (0.001 watts) of any current UPM-DT. The UPM-DT series have been in use worldwide since 1986 and conform to the testing guidelines recommended by FDA, JCAHO, AAMI and AIUM. Power is measured by the radiation force balance method. The accuracy of the UPM-DT’s are traceable to NIST.

Features for the UPM-DT-1000PA:

• Fastest response time= less than 3 seconds
• Highest Resolution: 1mW OR .1 mg in grams mode
• Five point certification (NIST Traceable)
• Measurement Range: 0-30WATTS
• Frequency Range: .5TO 10MHZ
• Measures total pulsed or continuous power
• Automatic zeroing and stabilization
• Digital display and RS-232 Interface
