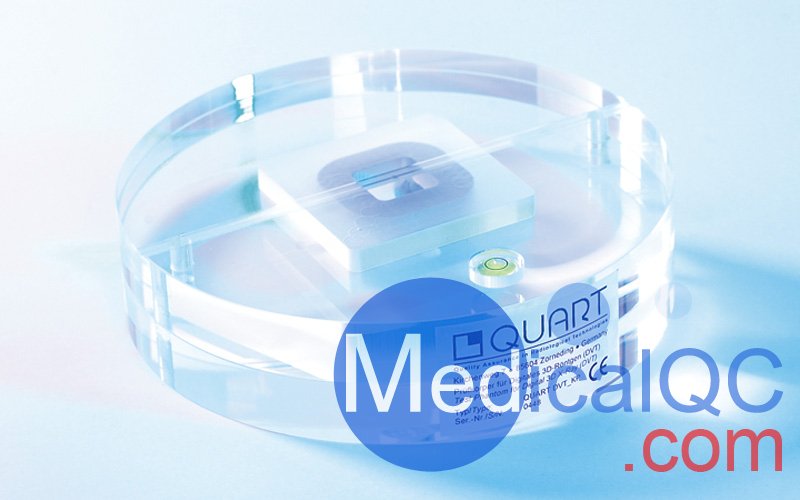

德國QUART DVT_KP CBCT模體，QUART DVT_KP錐形束CT模體
DIN 6868-15 CBCT恒定測試模體

QUART DVT_KP體模設計用于錐形束CT（CBCT），牙體積體層攝影（DVT）和三維成像設備的全套常規QA / QC。

德國QUART DVT_KP CBCT模體，QUART DVT_KP錐形束CT模體完全符合DIN 6868-15 CBCT穩定性測試。

只有一次曝光需要創建包含所有必需參數的3D數據集來評估圖像質量。通過獨特的QUART QA / QC軟件進行自動評估.Phantom可應用于從4x4cm到大視野（FOV）的場地尺寸。為各種CBCT系統提供定制持有人。

德國QUART DVT_KP CBCT模體，QUART DVT_KP錐形束CT模體技術規格
空間分辨率：線路傳播功能

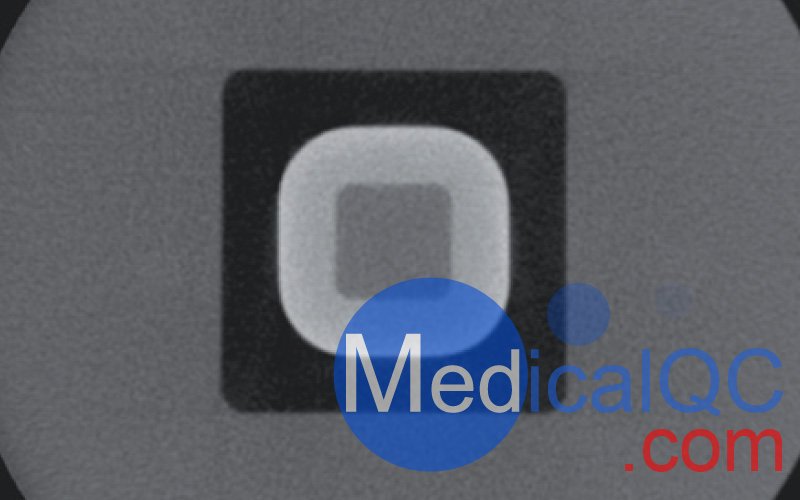

標準測試對象：PMMA /空氣/ PVC
材料等同物：自由空氣/軟的組織或骨頭
定位工具：線性（頂部）/選擇性標記
尺寸：Ø16厘米，身高：15厘米

德國QUART DVT_KP CBCT模體，QUART DVT_KP錐形束CT模體參數:
奈奎斯特頻率（NF）
對比噪聲比（CNR）

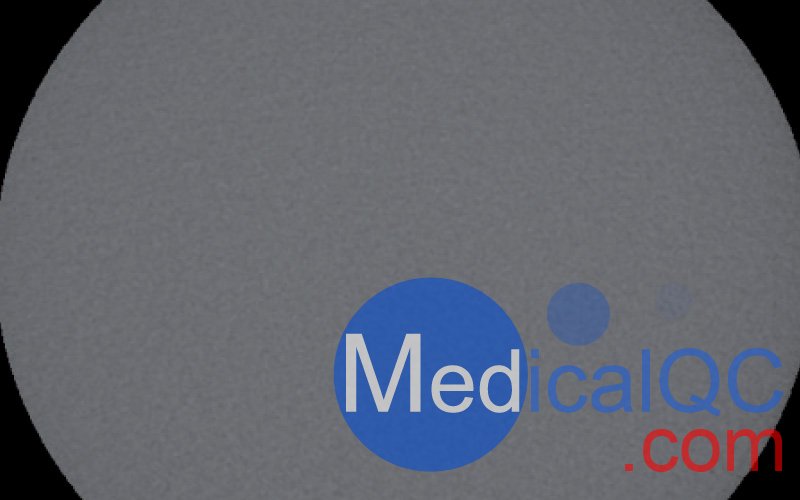

均勻性/圖像均勻性
10％和50％的調制傳遞函數（MTF）
文物，圖像缺陷
病人/模體定位精度









QUART DVT_KP
DIN 6868-15 CBCT Constancy Test Phantom

The QUART DVT_KP phantom is designed to be used for routine QA/QC within the full range of Cone Beam CT (CBCT), Dental Volume Tomography (DVT) and 3D imaging equipment.

The phantom fully complies with DIN 6868-15 for CBCT constancy tests.

Only one exposure required to create 3D data set containing all required parameters to evaluate image quality. Automated evaluation through unique QUART QA/QC software.Phantom can be applied for field sizes from 4x4cm to large fields-of-view (FOV). Customised holders for a variety of CBCT systems available.

Technical Specifications
SPATIAL RESOLUTION: Line spread function
STANDARD TEST OBJECTS: PMMA / Air / PVC
MATERIAL EQUIVALENTS: Free Air / Soft tissue / Bone
POSTIONING TOOLS: Linear (top side) / Selective markers
SIZE: Ø 16 cm, height: 15 cm
Parameters

Nyquist Frequency (NF)
Contrast-to-Noise Ratio (CNR)
Homogeneity / Image Uniformity
Modulation Transfer Function (MTF) at 10 % and 50 %
Artefacts, Image Flaws
Patient/Phantom Positioning Accuracy
